UPVC Column Pipes Manufacturers
Kankai Pipes & fittings is a renowned manufacturer of UPVC column pipes. With a strong focus on quality and durability, their pipes are designed to withstand high-pressure applications and provide efficient water transportation for various industrial and agricultural purposes.

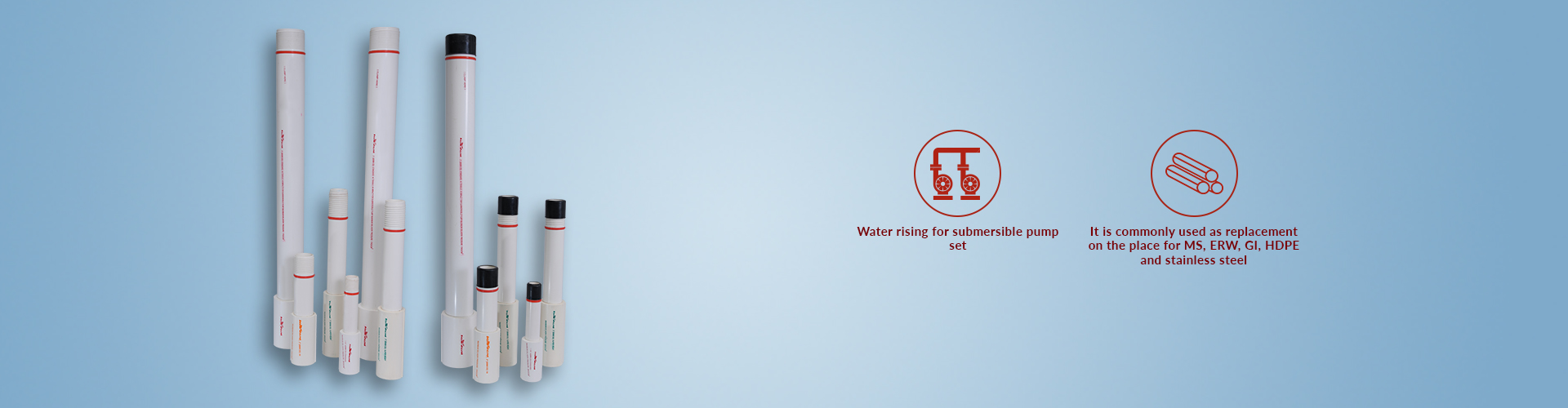

uPVC Column Pipes
Salient Feature :
- Low maintenance and long life
- No contamination because of corrosion or incrustation
- High tensile load capability
- Leak proof joints
- High impact strength
- Low cost compared to C.I and G.I pipes
- Smooth bore that offers excellent flow properties
- Easy in installation
- Economically satisfied
- Minimum frictional losses thus saving power
- 25% higher discharge charge than G.I pipes
- Non conductor of Low thermal conductivity and electricity
USE IN APPLICATIONS
- Water rising for submersible pump set
- It is commonly used as replacement on the place for MS, ERW, GI, HDPE and stainless steel
Technical Parameters
Capacity to pull weight of submersible pumps column pipes with chain pulley
| Nominal Diameter | Nominal | O.D. Nominal | Ultimate Breaking load (Kgs.) | Ultimate Breaking load (Kgs.) | Ultimate Breaking load (Kgs.) |
| Inch | mm | - | Medium | Standard | Heavy |
| 1.00" | 25 | 33 | 1400 | 1800 | - |
| 1.25" | 32 | 42 | 2100 | 2600 | 3100 |
| 1.50" | 40 | 48 | 2500 | 3000 | 4000 |
| 2.00" | 50 | 60 | 2800 | 3800 | 4700 |
| 2.50" | 65 | 75 | 3500 | 5000 | 7000 |
| 3.00" | 80 | 88 | 5000 | 7000 | 9500 |
| 4.00" | 100 | 113 | 7500 | 10300 | 16000 |
Some important features of our column pipes, couplers and its accessories
- Square threads of pipes as well as coupler gives very high tensile load capacity, high izod impact and easy fitment, re-fitment and longer life
- The rubber dampeners, silent system provides leak proof fittings and also absorbs the vibration of the pump which results in longer life of motor and pump bearing.
- Our square threads of pipes as well as coupler are of best designed and manufactured in CNC machines in order to provide best accuracy and quality.
- The rubber ring like step ring, L-ring, O-ring & Seal ring are of natural rubber and best to absorb the shock of motor
- Our thick and thin portion of the pipes has been so developed in order to absorb the full torque produced due to motor thus resulting long life.
- The technically developed adapters have 11 TPI metric threads at one end which fits into motor and square threads at one end which fits into column pipes.
